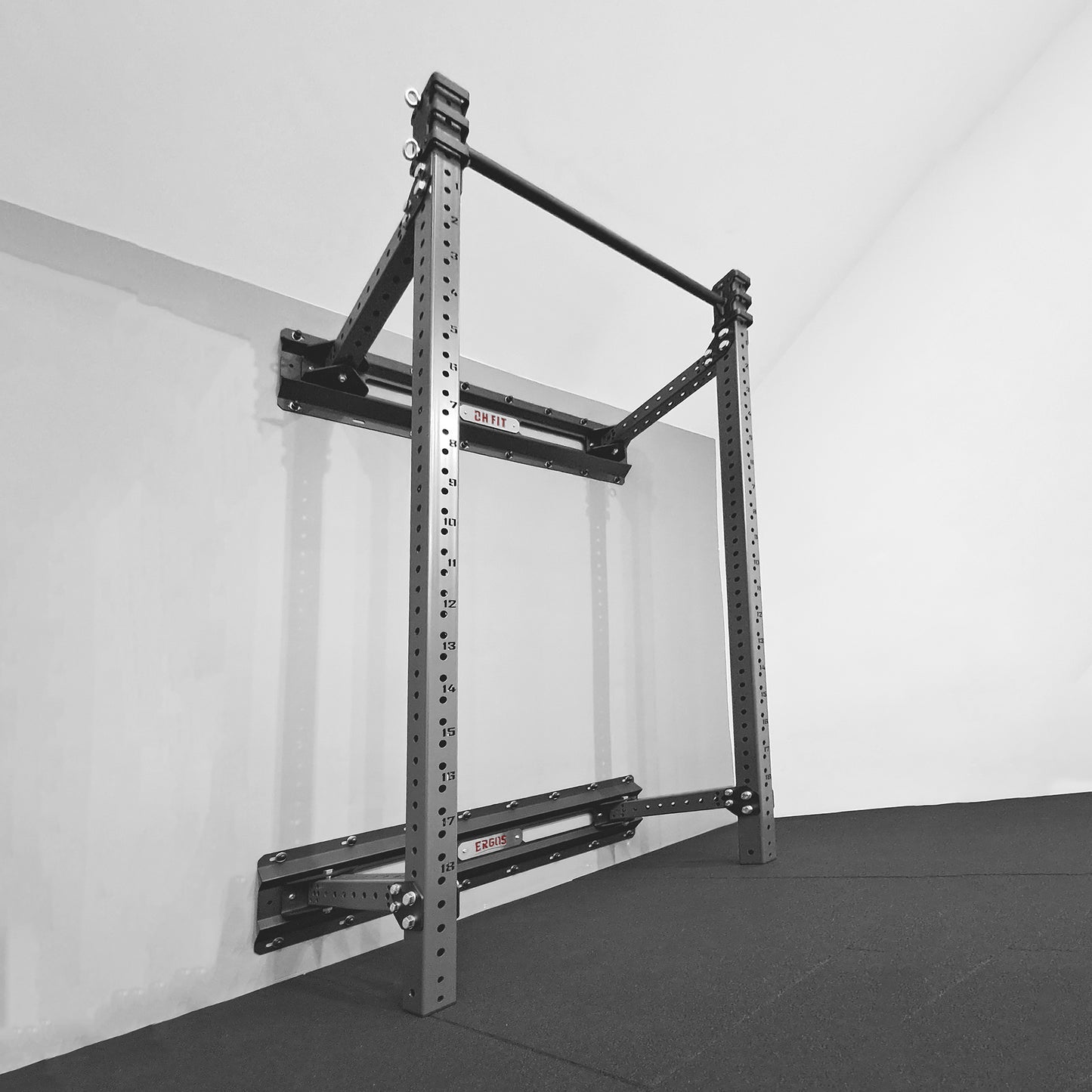

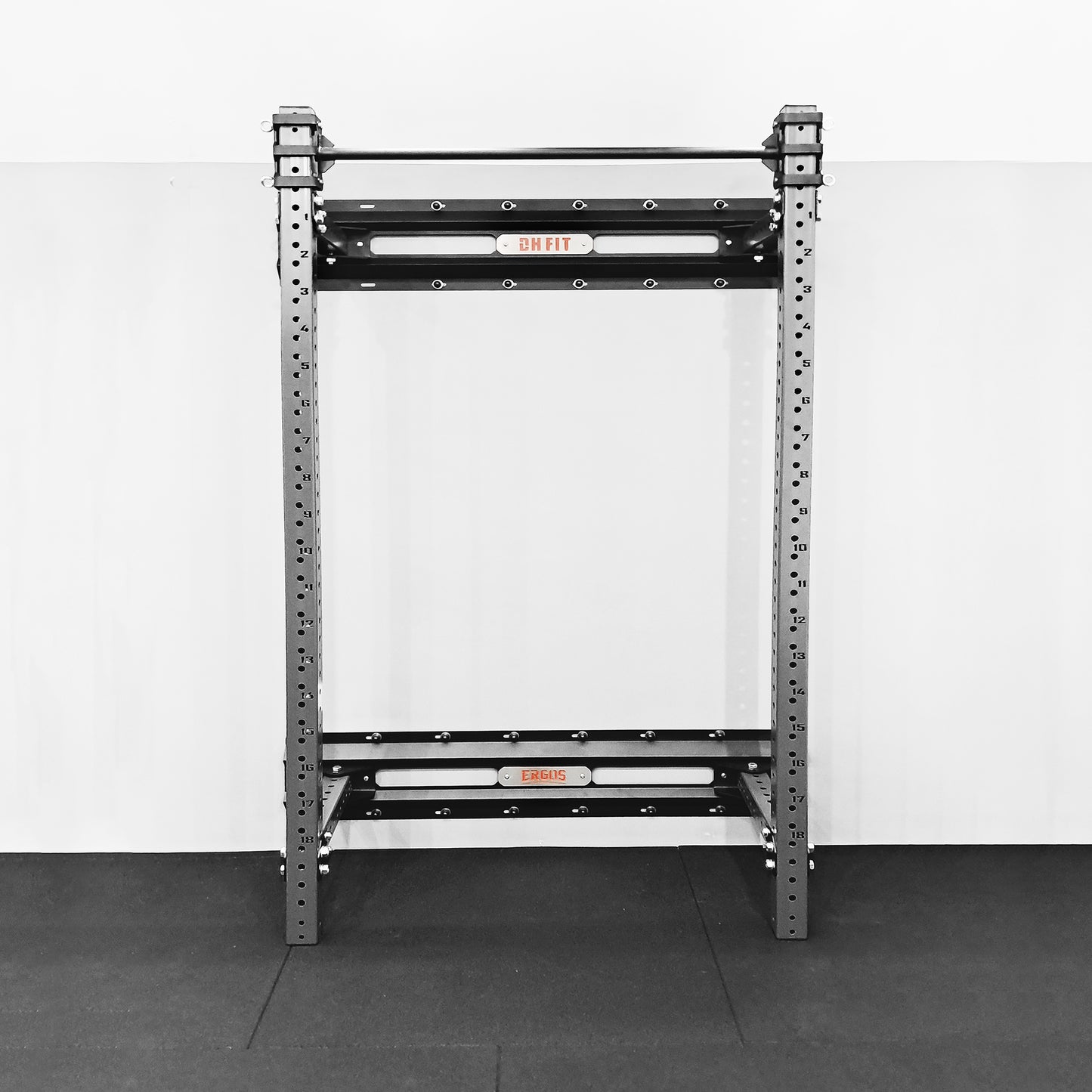

New Folding Rack
New Folding Rack
Bring home one of the most compatible, high-performance racks on the market, with a steel profile fitting a wide variety of attachments.
A true compromise between space and high performance, the New Folding Rack brings the robust, widely used 75x75mm profile to a sturdy folding frame. Securing the frame is a set of thick 6mm hinges coupled to our tight fitting detachable pull-up bar frame. The unique design of the tight fittings allows the rack to maintain stability.
An additional pair of thick 3mm stringers is available for this folding rack, with a large 1500 x 300mm footprint, featuring a unique set of reinforcement bends giving the hinges optimal support at the top and bottom of the rack.
Enquire with our team for more information about bespoke faceplates featuring your studio gym logo or customized text.
Laser-cut and powder-coated in the UK
SPECIFICATIONS

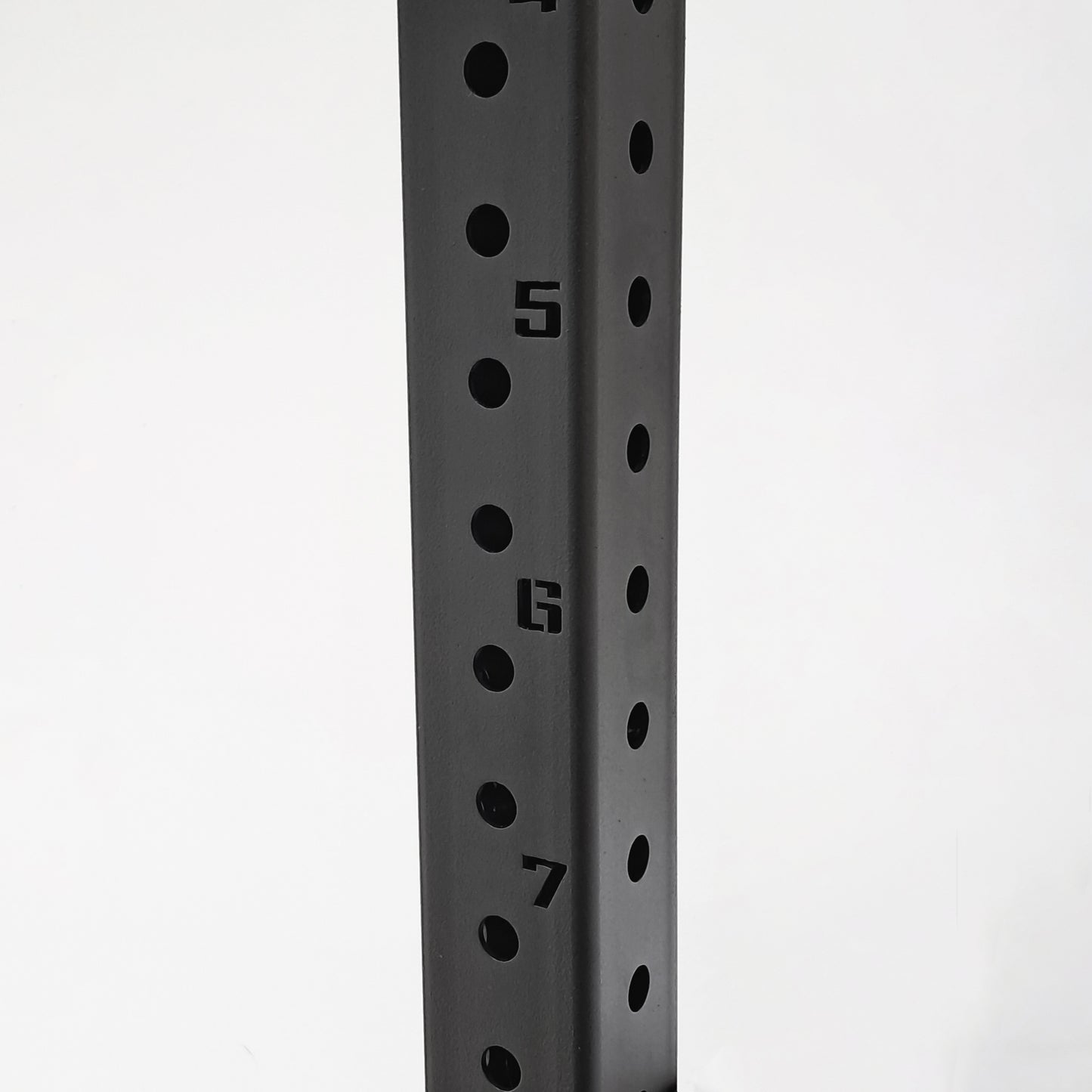

Made and manufactured in the UK: heavy-duty, structural 75 x 75 x 3 mm (11-gauge) steel uprights and cross beams.
- Height 231 cm (91 inches)
Available in various heights, enquire our team for more information
- Width 124 cm (49 inches)
Standard width compatible to Olympic barbells
- Depth 60 cm (23.6 inches)

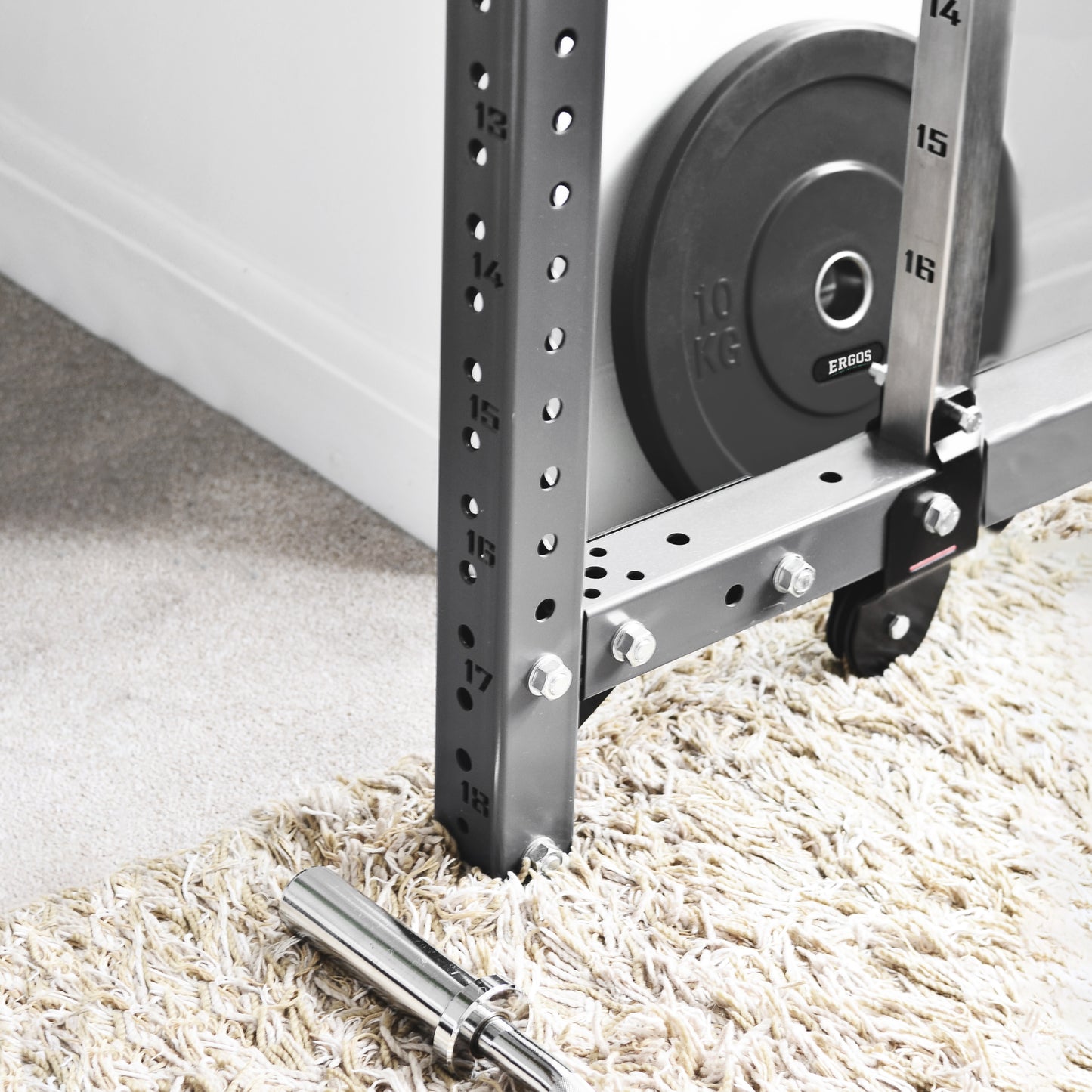

Compatible to our patent pending, detachable weight plate loading system
- Load capacity: Pull-up Bar 350 kg, Rack uprights 500 kg.
- Hardware: M16 High Tensile Bolts BZP
- Hole Spacing: 50.8 mm (2 inches)
- Attachments included: 1 pair of Ergos J-cups Universal
- Attachments recommended: Ergos Evolution and Ergos XTrem,
- Compatible with 5/8 inch pin size attachments for *3x3 inch accessories.
- Replacement pads made of PA Nylon like material are available for tight fitting of 3x3” accessories. Enquire our team for more information)
