Embrace the Freedom of Home Workouts
At Ergos, we understand the challenges of balancing a busy lifestyle with your fitness goals. That's why we've developed the ultimate solution for anyone looking to build a home gym without sacrificing space or versatility. Our foldable rack combines innovative design with premium quality materials to offer you a gym-quality workout experience, right in the comfort of your own home

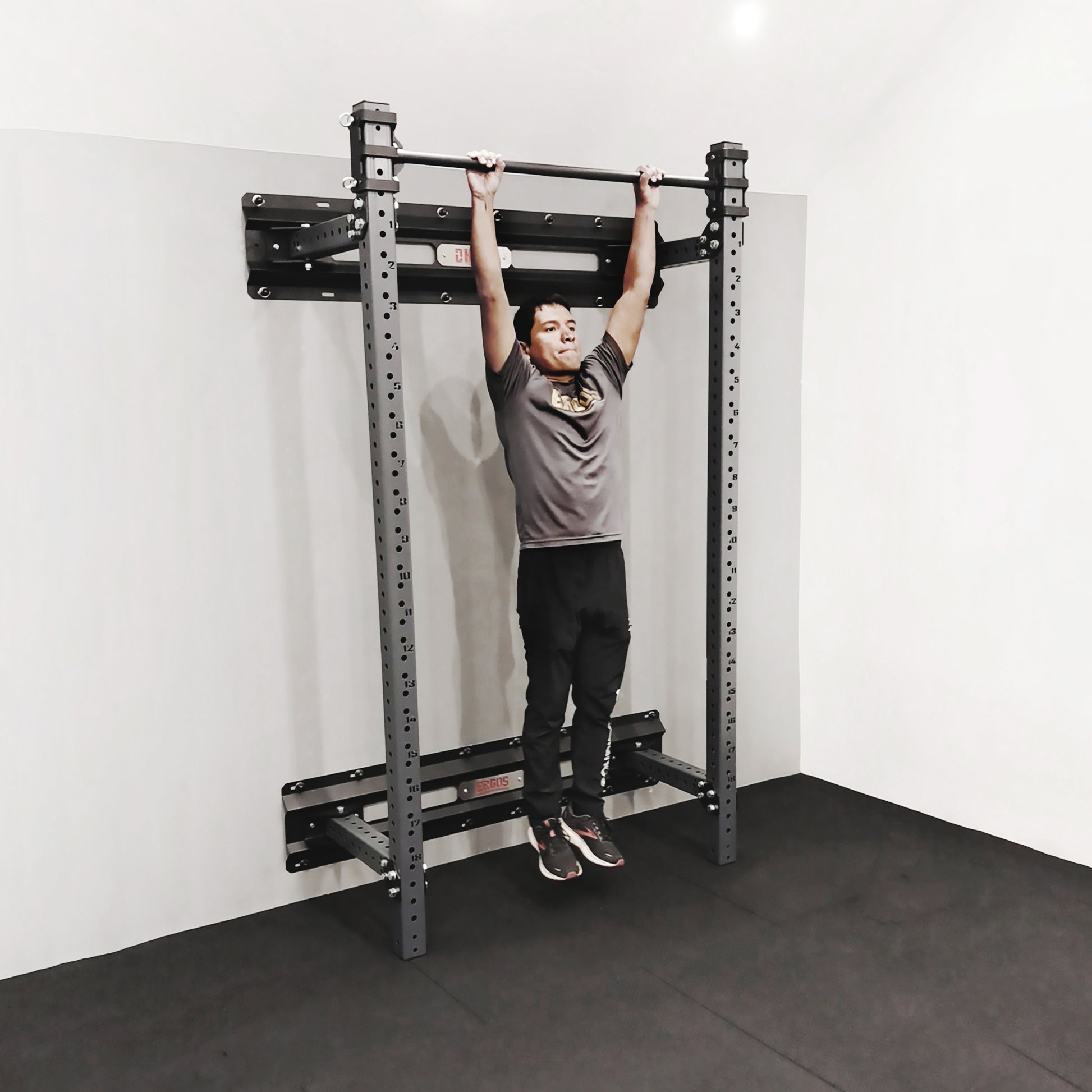

Unlock Your Fitness Journey with Our Folding Rack
Embark on your fitness journey with our foldable rack – the key to unlocking a stronger, healthier you. Transform any space into your personal gym with convenience and versatility. Say hello to limitless possibilities and redefine what's possible with our compact yet powerful solution.
Unmatched Strength and Durabilty

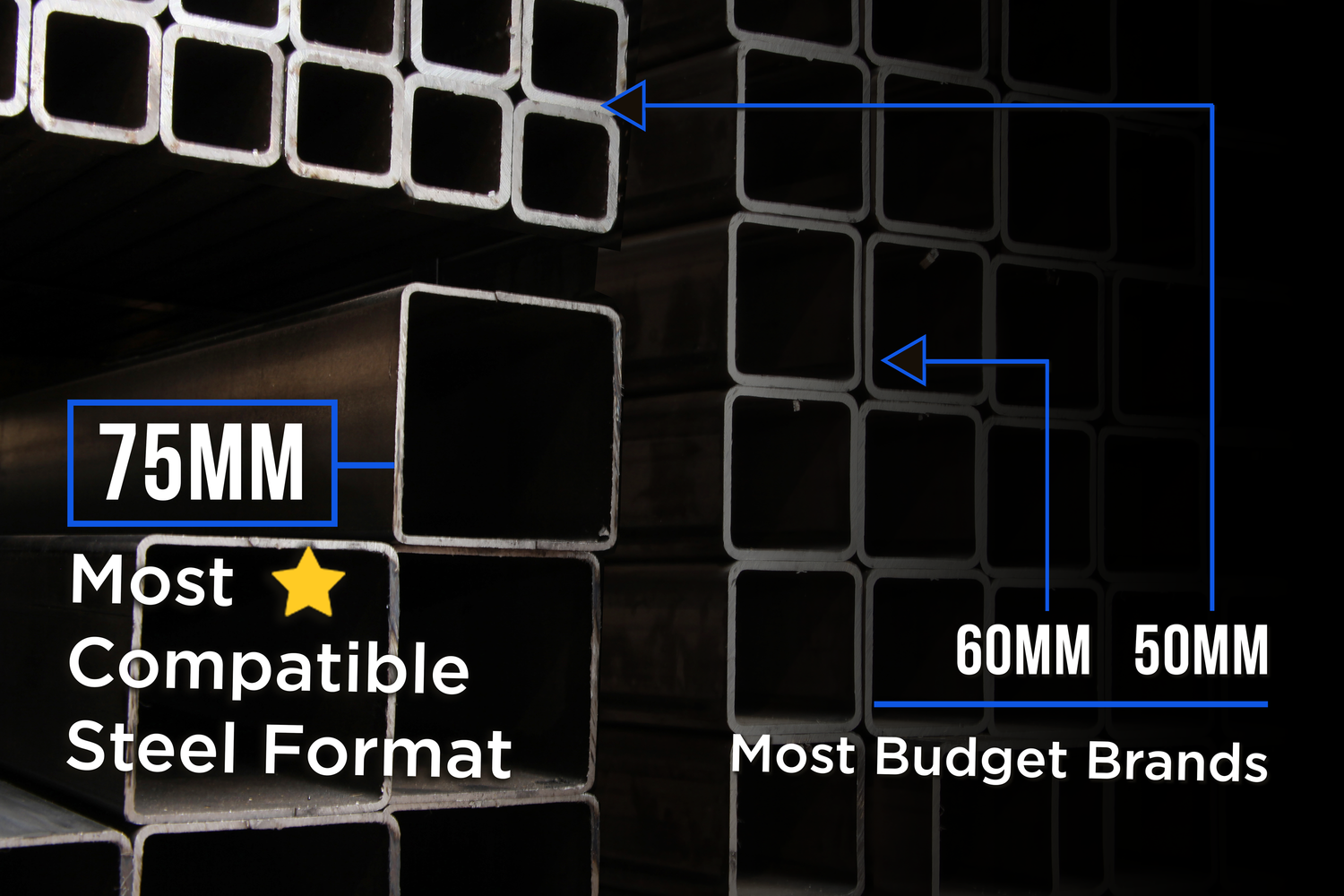

75 x 75 x 3 mm BOX SECTION
Made and manufactured in the UK
Specifications
Descrption
Bring home one of the most compatible, high-performance racks on the market, with a steel profile fitting a wide variety of attachments.

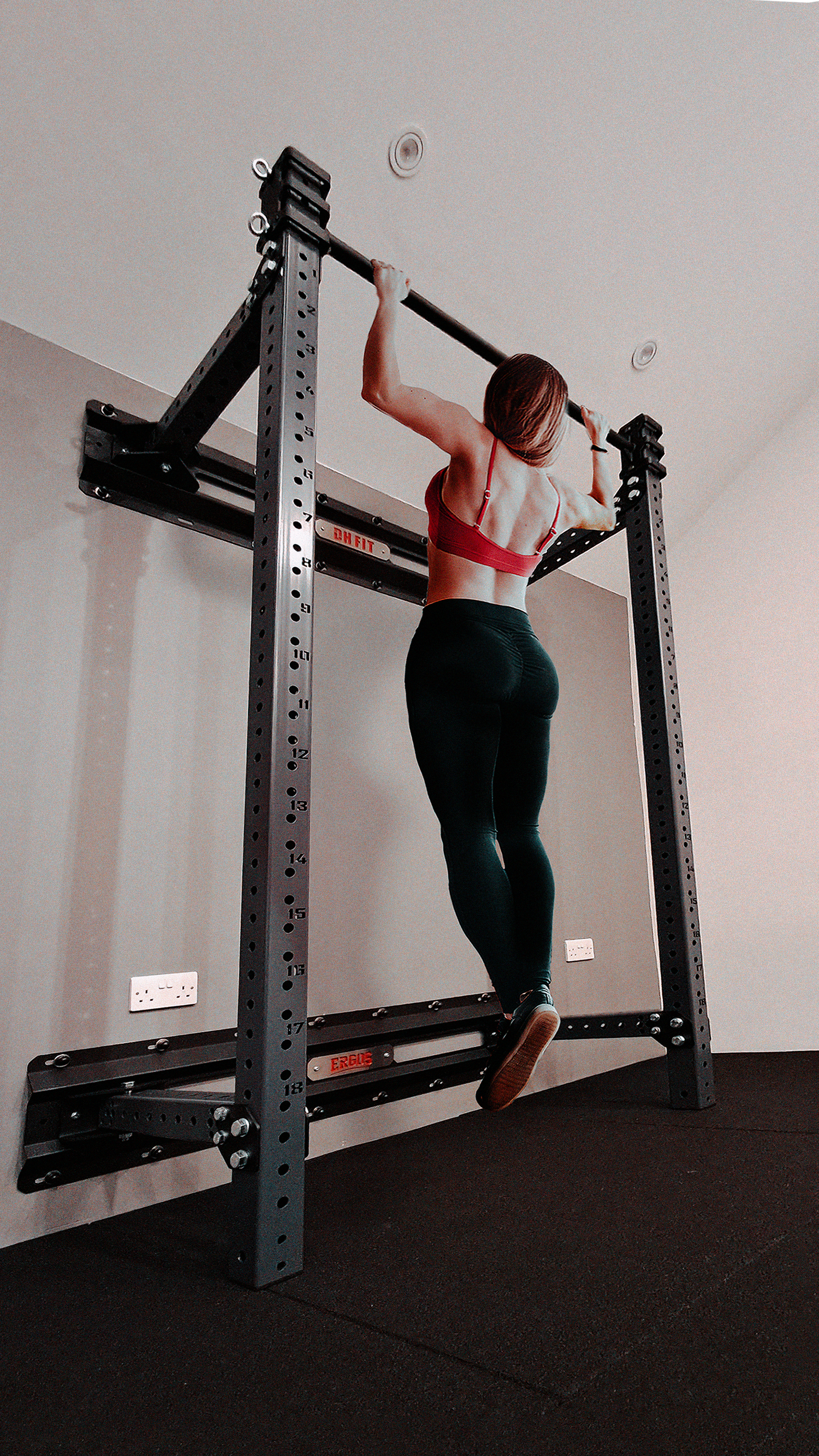

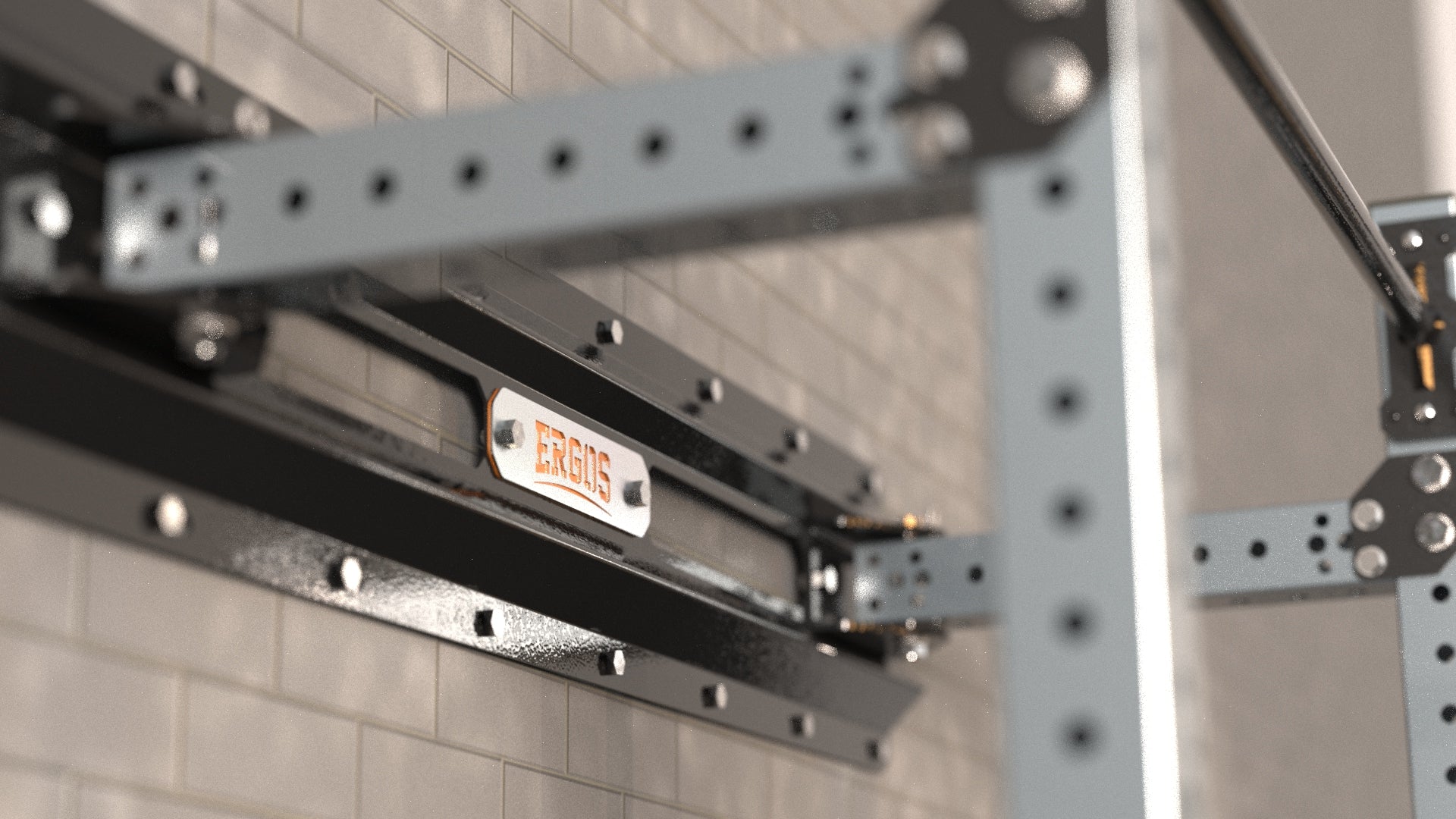

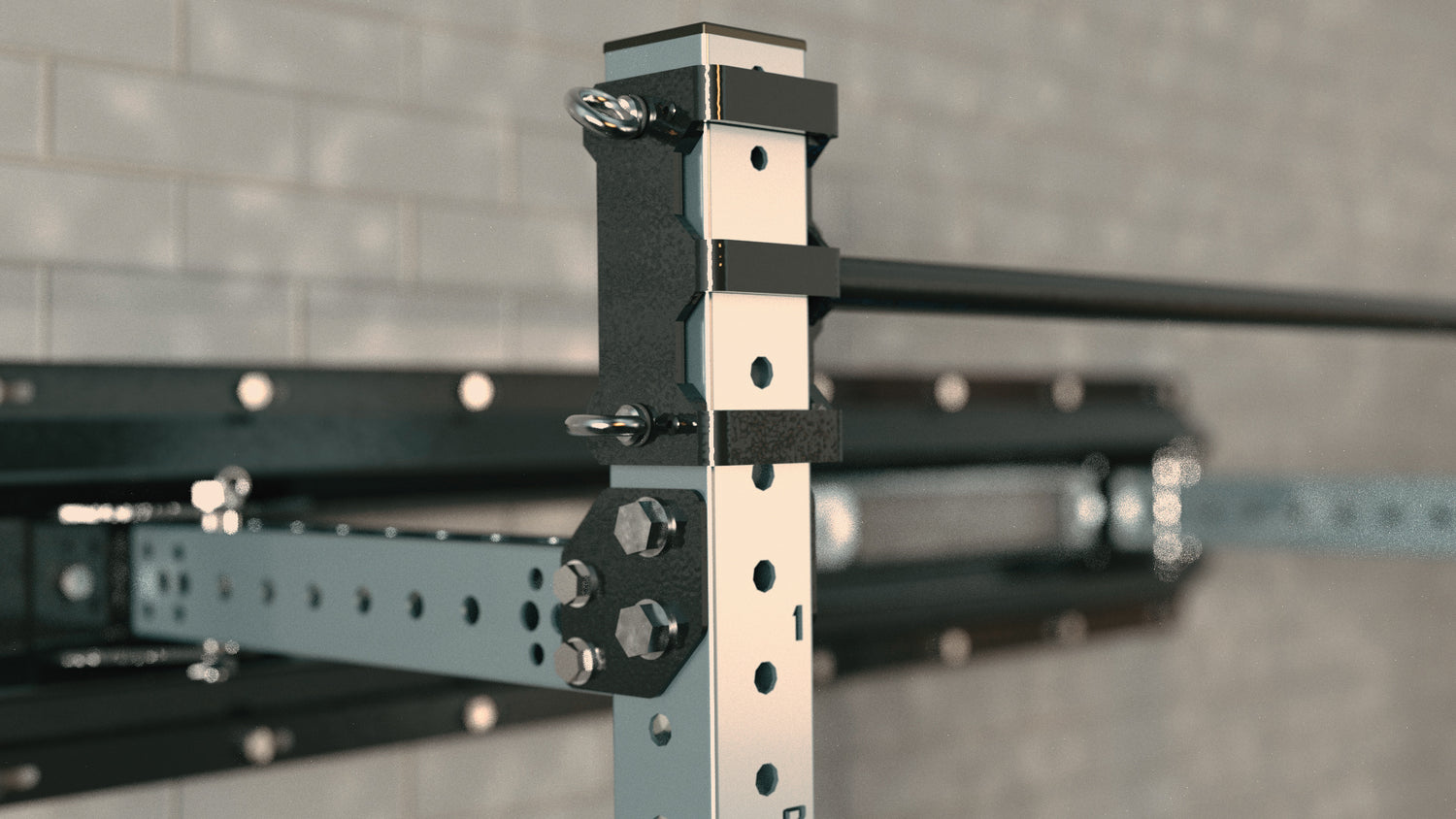

A true compromise between space and high performance, the HPF rack brings the robust, widely used 75x75mm profile to a sturdy folding frame. Securing the frame is a set of thick, 6mm hinges coupled to our tightly-fitted detachable pull-up bar frame. The unique design of the tight fittings allows the rack to maintain stability during exercising.

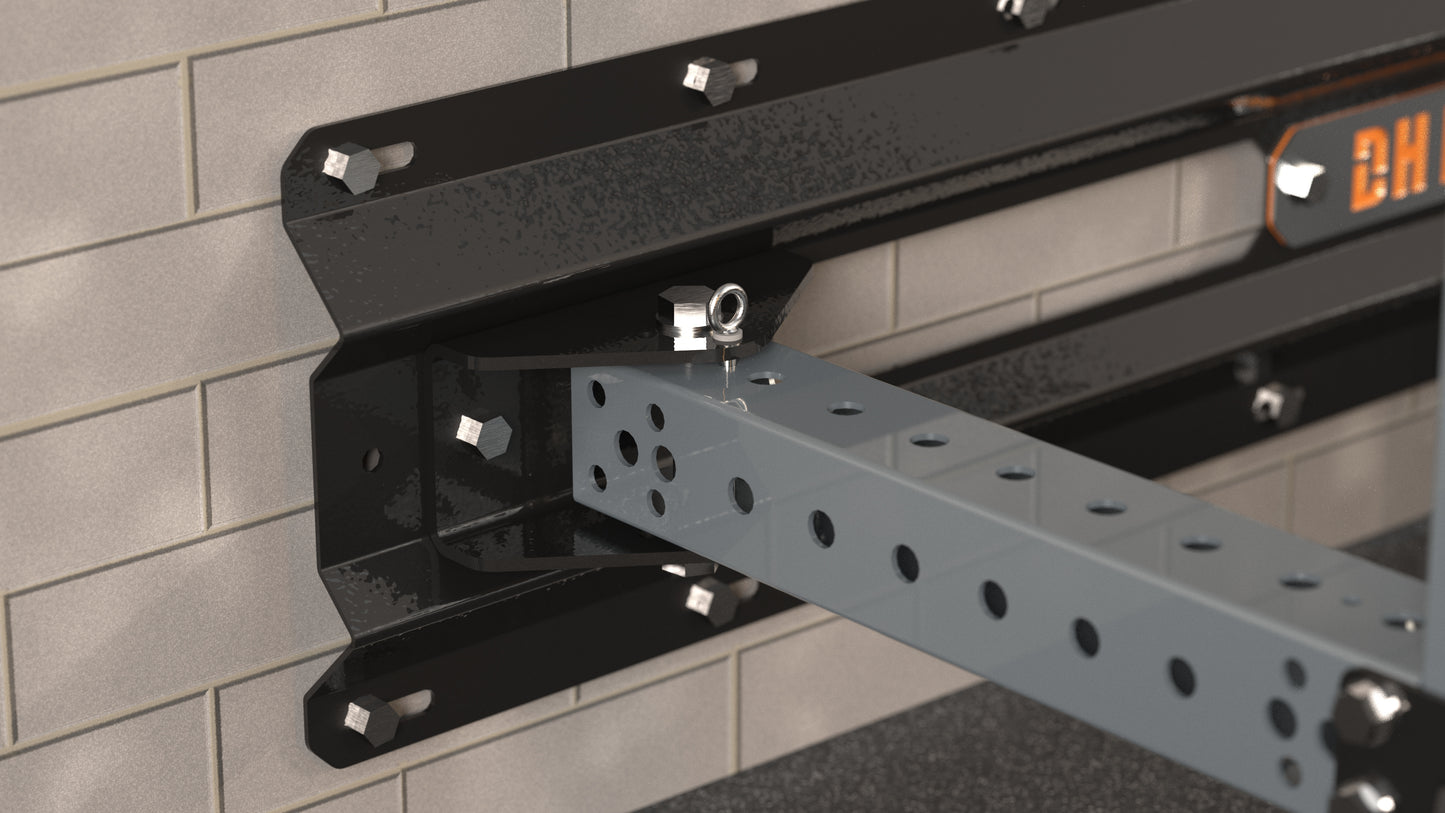

An additional pair of thick, 3mm stringers is available for this folding rack, with a large 1,500 x 300mm footprint, featuring a unique set of reinforcement bends which gives the hinges optimal support at the top and bottom of the rack.

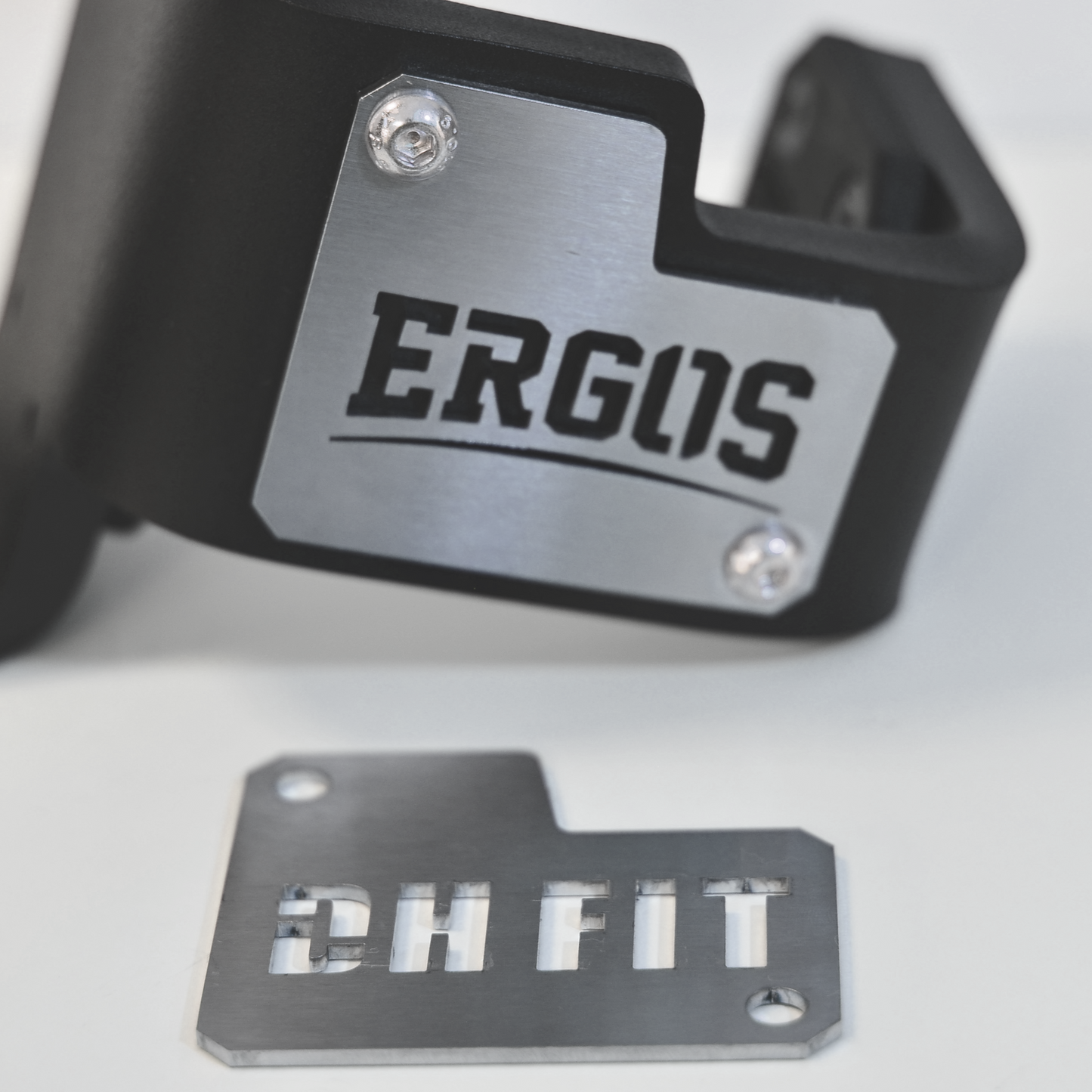

Enquire with our team for more information about bespoke faceplates featuring your studio gym logo or customized text.
Laser-cut and powder-coated in the UK

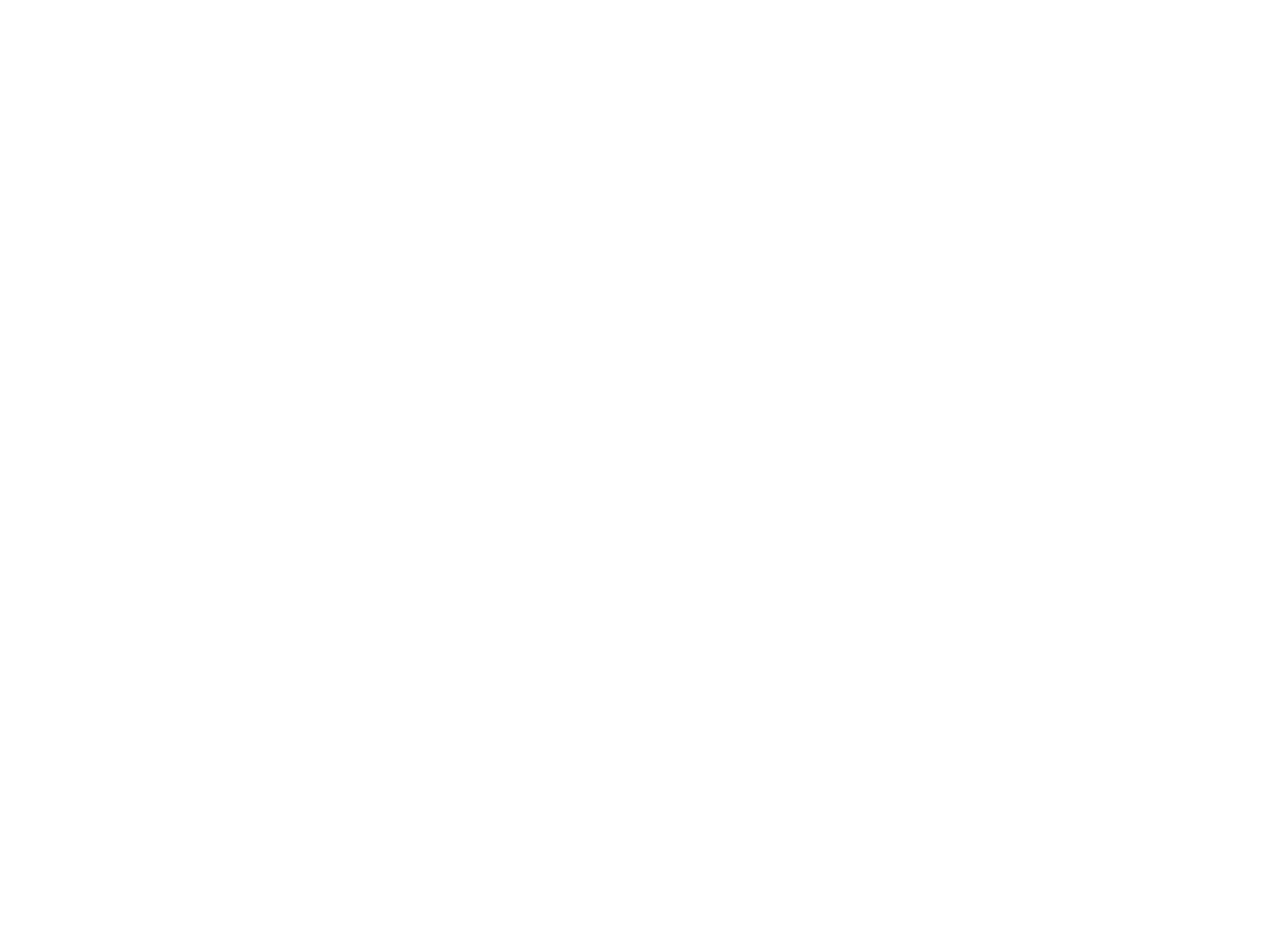

General Specifications
* Height 231 cm (91 inches)
Available in various heights, enquire our
team for more information
* Width 124 cm (49 inches)
Standard width compatible to Olympic
barbells
* Depth 60 cm (23.6 inches)
Compatible to our patent pending,
detachable weight plate loading system
Materials & Harware
- Heavy-duty,
structural 75 x 75 x 3 mm (11-gauge) steel uprights and cross beams - M16 High Tensile Bolts BZP
- Stainless Steel Union Plates
Technical Details
- Load capacity: Pull-up Bar 350 kg, Rack
uprights 500 kg. - Hole Spacing: 50.8 mm (2 inches)
- Hole Size: 17,0 mm (0.67 inches)
Extras

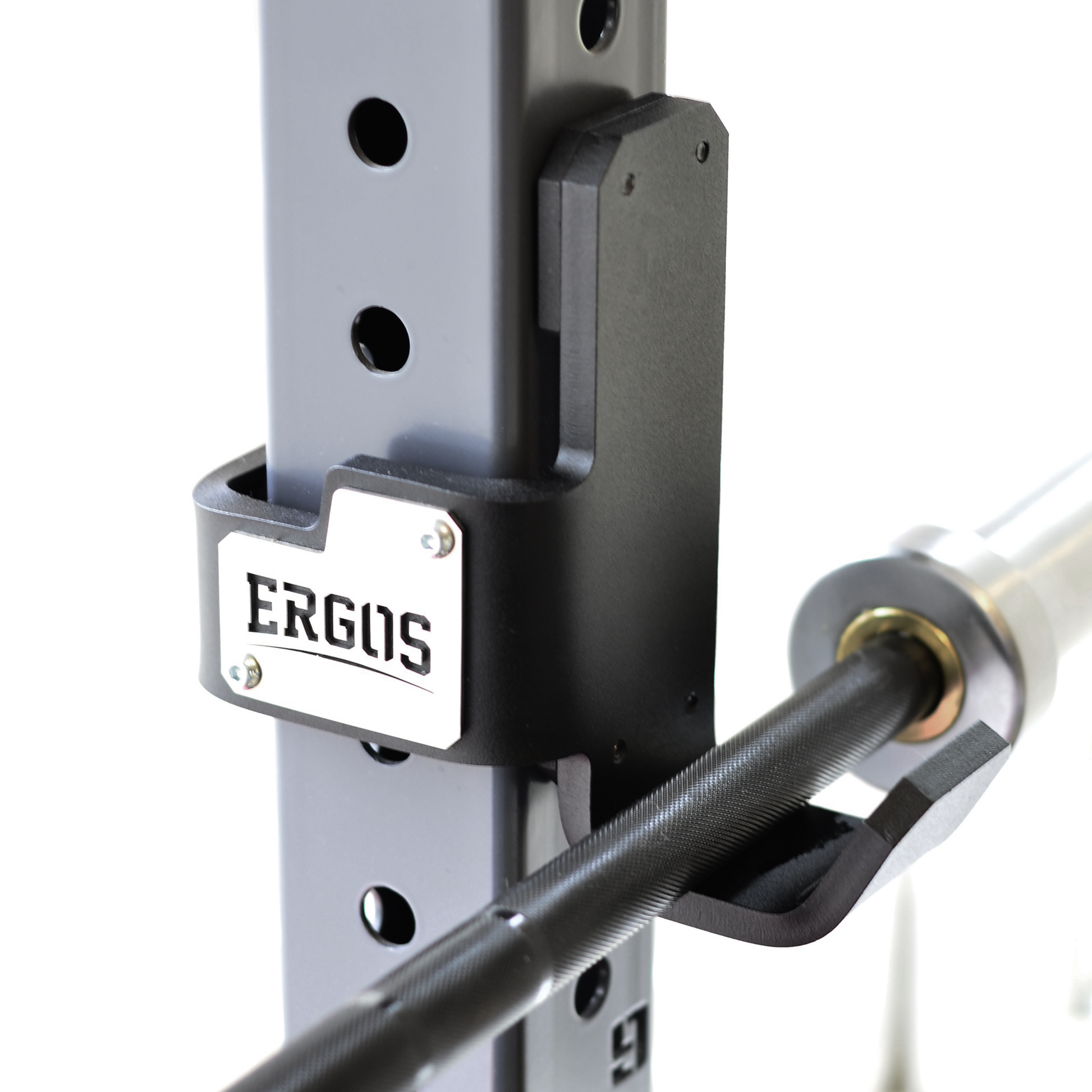

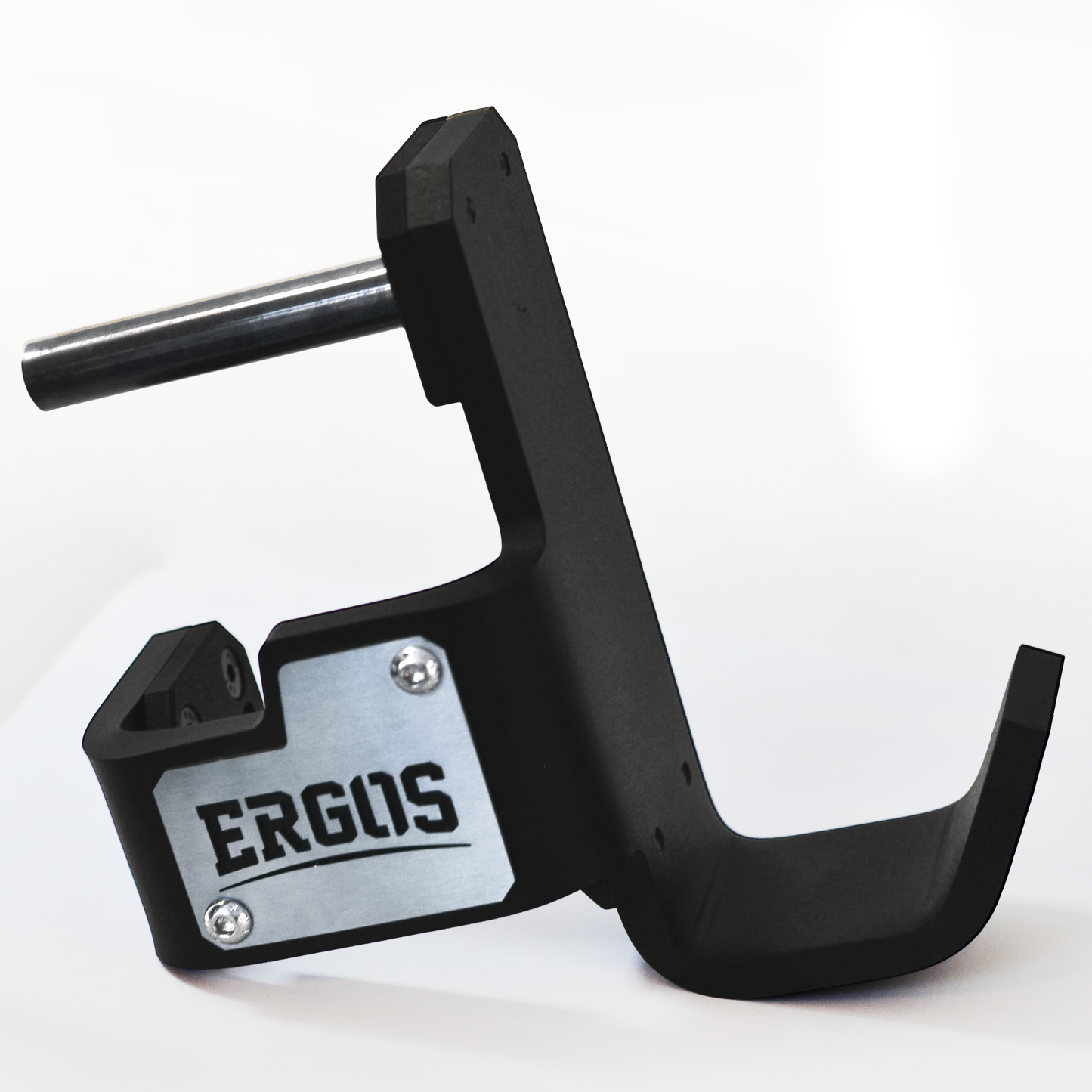

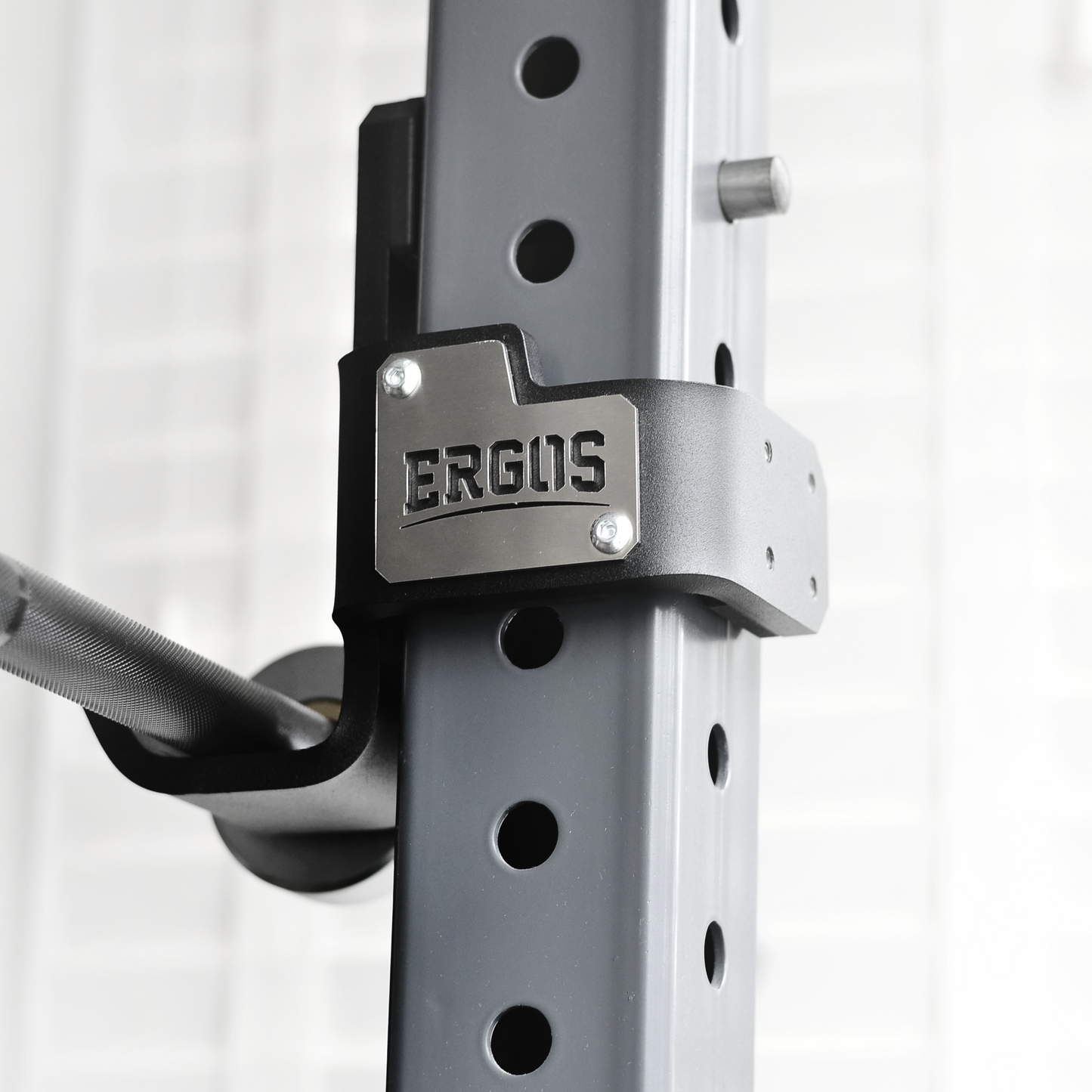

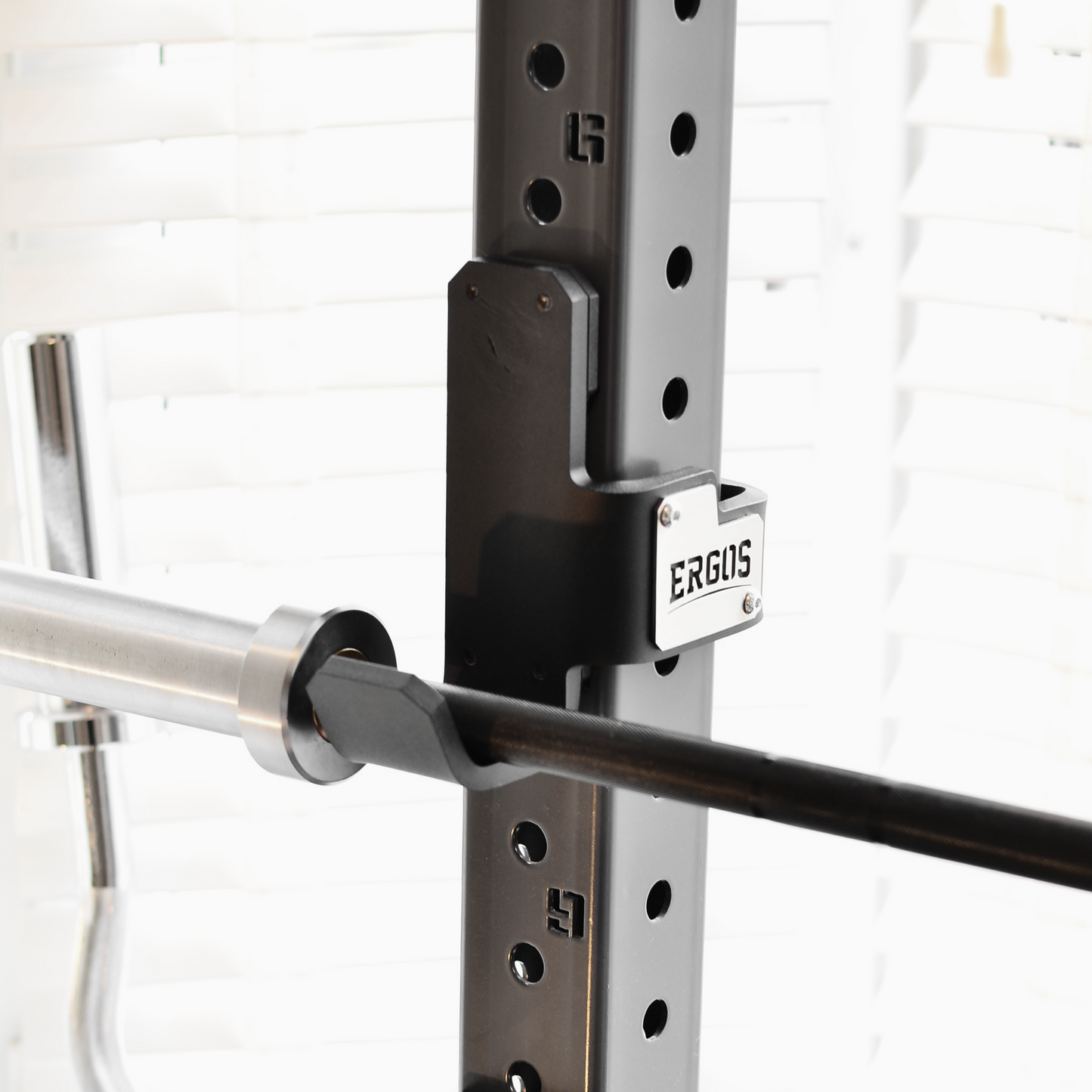

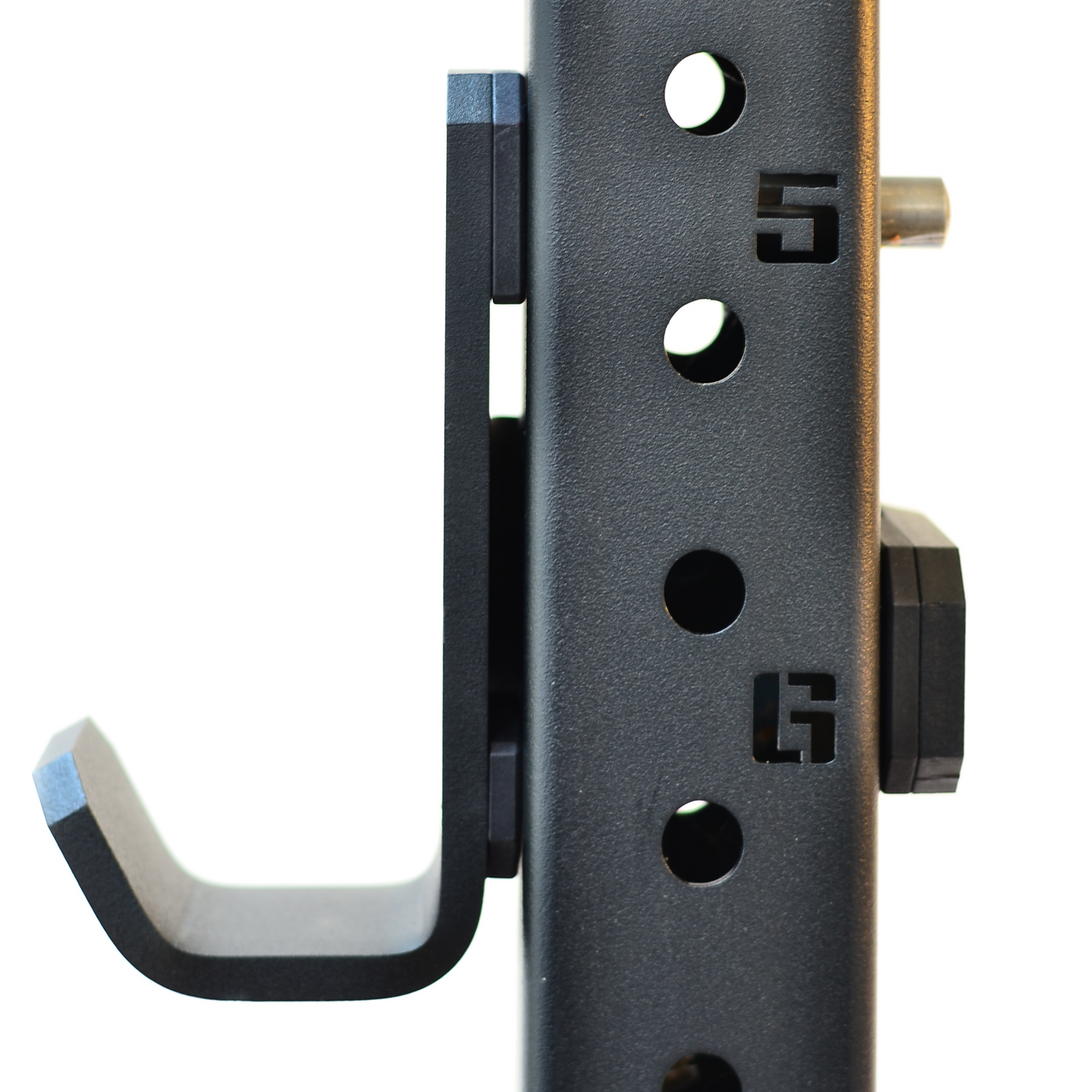

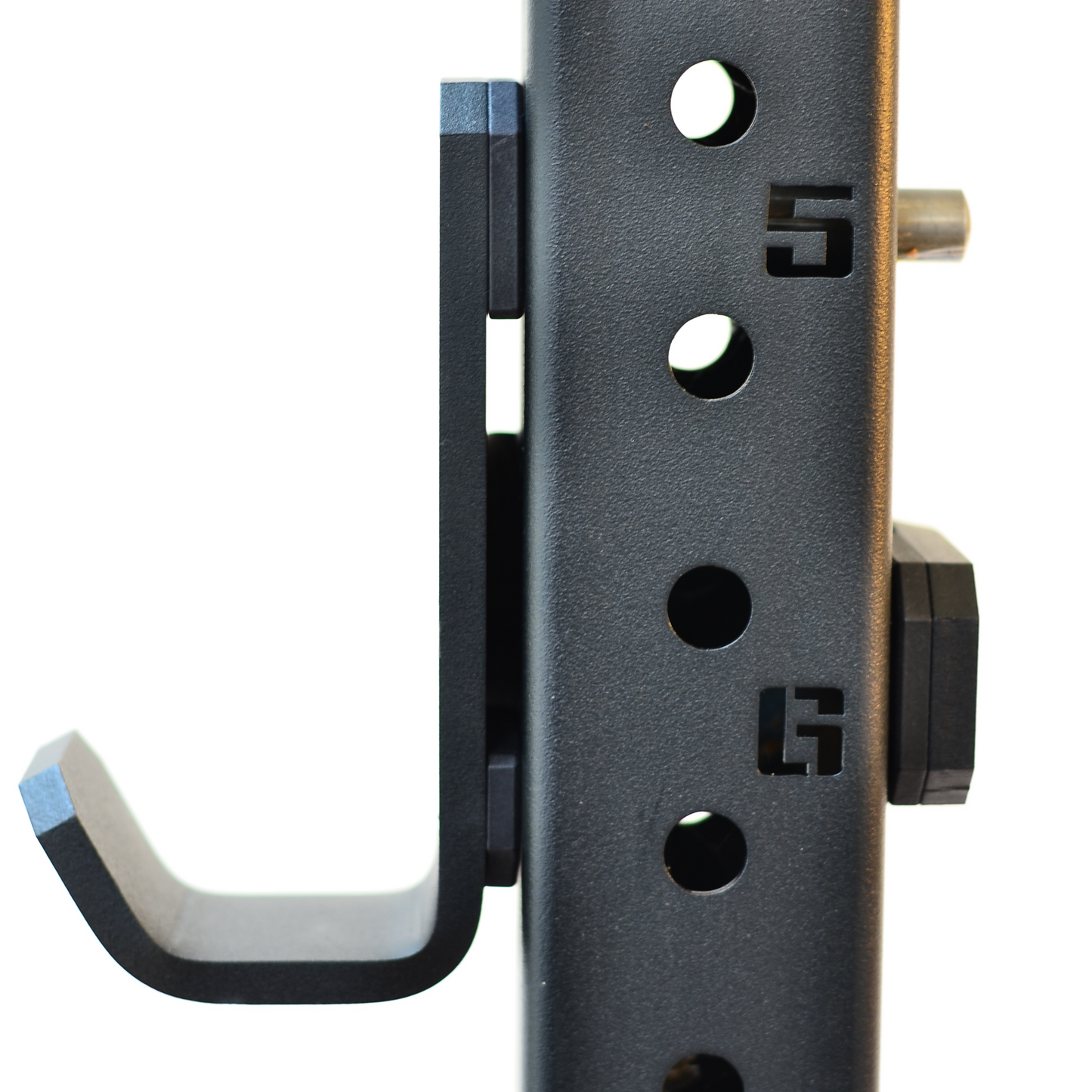

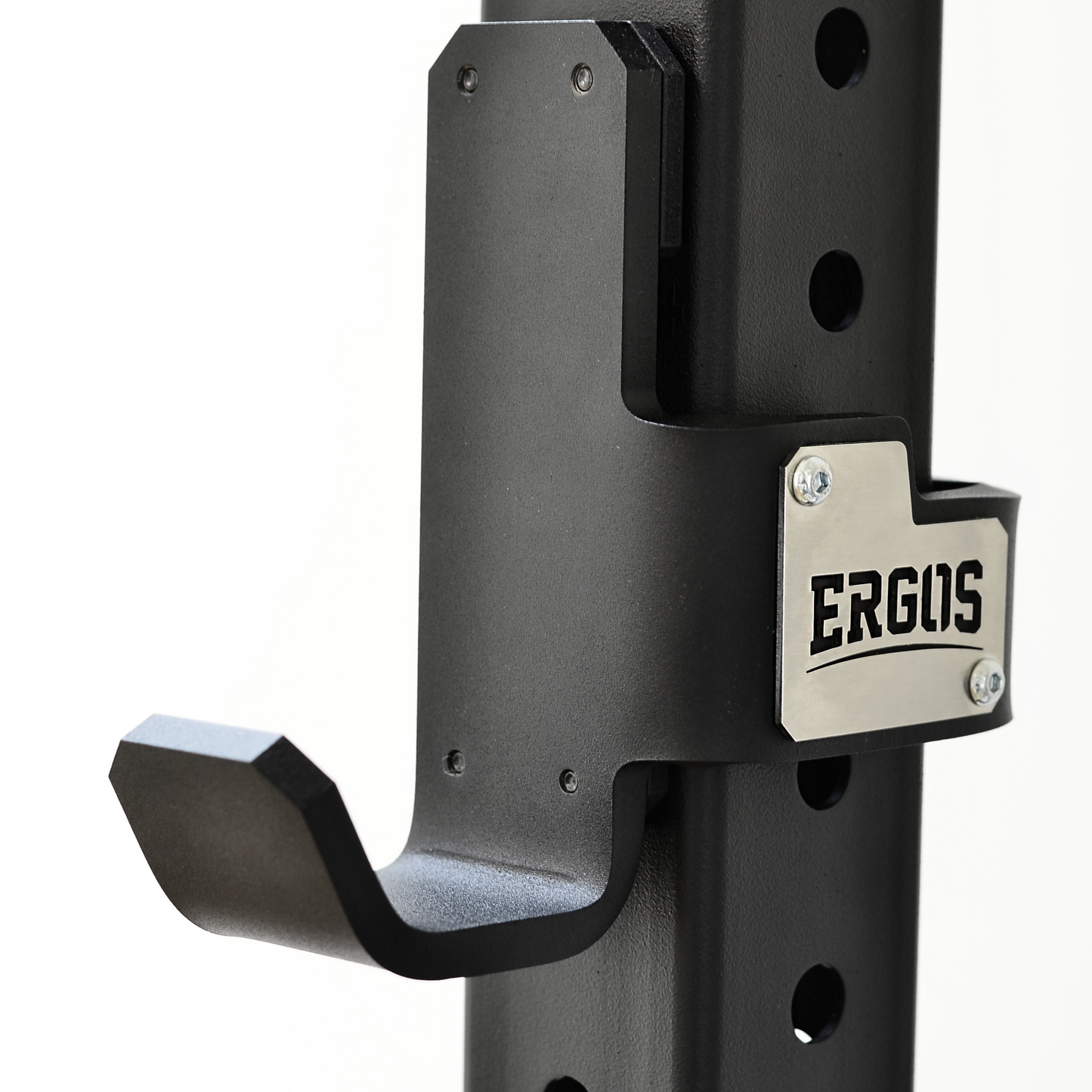

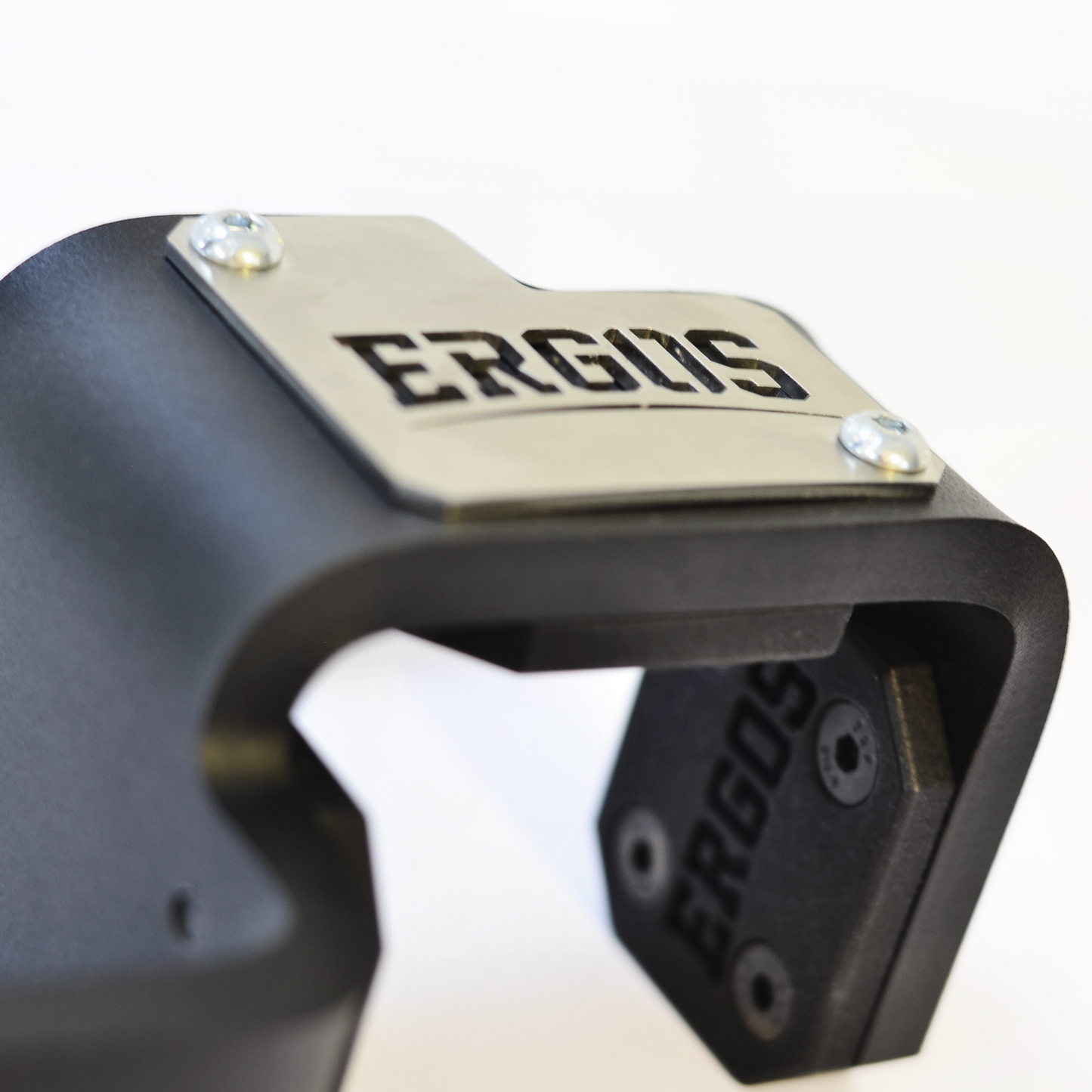

- Attachments included: 1 pair of Ergos
J-cups Universal - Attachments recommended: Ergos Evolution
and Ergos XTrem, - Compatible with 5/8 inch pin size
attachments for *3x3 inch accessories. - Replacement

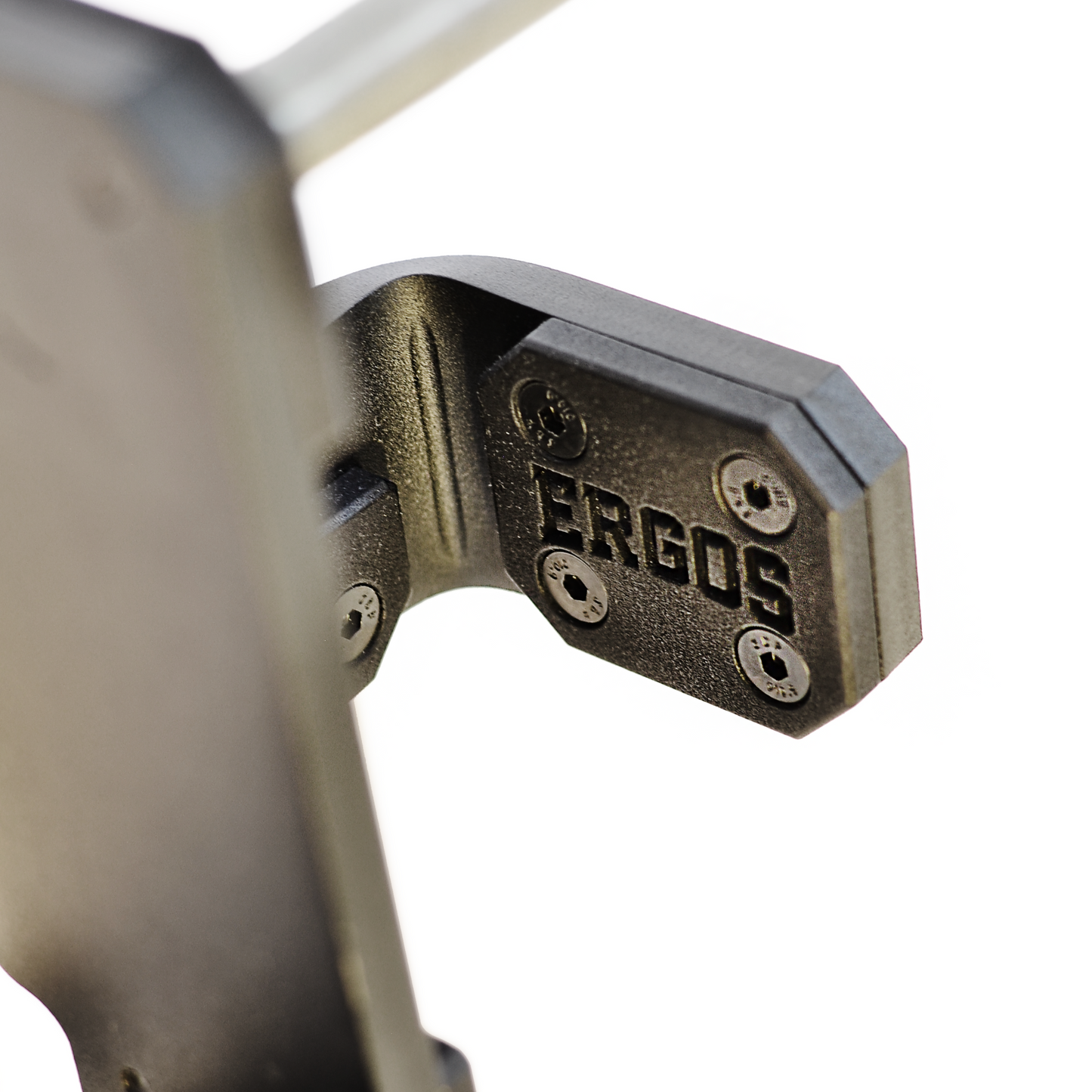

pads made of PA Nylon like material are available for tight fitting of 3x3”
accessories. Enquire our team for more information)
